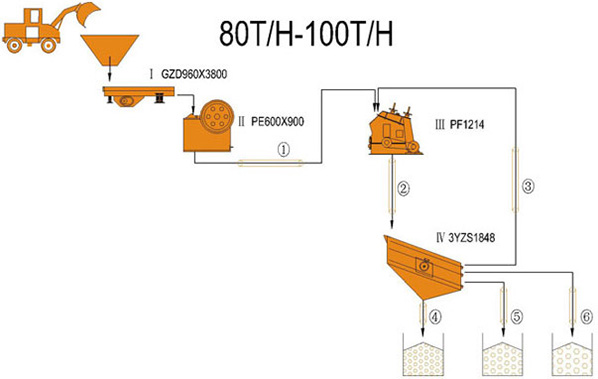

The JOYAL 80-100TPH Jaw & Impact Crushing Plant a crushing and screening system, which includes GZD960*3800 vibrating feeder,PE600*900 jaw crusher,PF1214 impact crusher,3YZS1848 vibrating screen,B650*16M belt conveyor and centrally electric controlling system, etc. To meet customer's specific requirement for the stone crushing, we can also add other equipments on the crushing plant, such as dust catcher.
NO. | equipment | model | qty. |
Ⅰ | Vibrating Feeder | GZD960*3800 | 1 |
Ⅱ | Jaw Crusher | PE600*900 | 1 |
Ⅲ | Impact Crusher | PF1214 | 1 |
Ⅳ | Vibrating Screen | 3YZS1848 | 1 |
① | Belt Conveyor | B650*16M | 1 |
② | Belt Conveyor | B650*20M | 1 |
③ | Belt Conveyor | B500*21M | 1 |
④ | Belt Conveyor | B500*18M | 1 |
⑤ | Belt Conveyor | B500*18M | 1 |
⑥ | Belt Conveyor | B500*18M | 1 |
