Two excellent performances of VSI sand making machine
Time: 2022-01-14

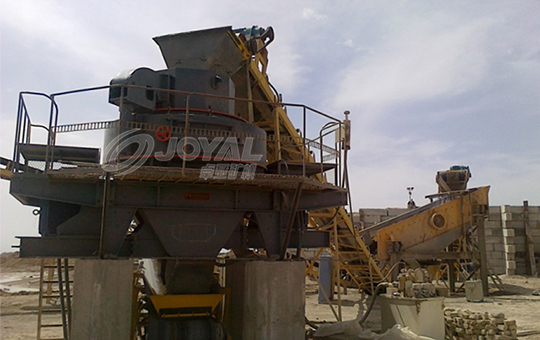

VSI Vertical Shaft Impact Sand Making Machine is a sand making machine (crusher) made by Shanghai Joyal through technical improvement and structural improvement on the basis of the ordinary third-generation vertical shaft impact crusher. The widely used new sand making equipment is the fifth and sixth generation impact crushing sand making machines, usually referred to as new sand making machines. The new sand making machine has optimized impeller and cavity design in structure, so that the production efficiency is much higher than that of ordinary sand making equipment, and the product quality can be guaranteed.
1. Fine crushing capacity A throwing head and a counterattack baffle are installed around the impeller of the new sand making machine. When the material enters the crushing cavity, the rotating impeller hits the material at a high linear speed of 80 meters per second, and the material is hit to the counterattack block. The plate then bounces back to the impeller, which repeatedly and strongly impacts the material to achieve the purpose of crushing. During the crushing process, due to the lack of power of the materials, some of them will fall to other places in the middle, and they will collide with the surrounding guard plate and other falling materials during the period, and continue the crushing process. Under the high-speed impact of the impeller and the constant friction and collision between the materials, the materials achieve the effect of crushing, and some materials will be finely crushed, and the particle size is below 4.75mm.
2. Shaping ability In the process of material crushing, the falling material will continue to collide with the same falling material and the material layer formed by the previously fallen material. When a large amount of material is fed to form a blanking explosion, the There will be more frictional collisions between each other, so that the materials can be subjected to frictional collisions in all directions in the crushing chamber of the sand making machine, so as to achieve the effect of shaping, and the discharge particle shape is better.
The new sand making machine has two outstanding performances and is widely used in the sand making market, including the field of machine-made sand production of resources such as stones, tailings, and leftovers, and the field of aggregate shaping. In addition, the new type of sand making machine also has a unique feeding crushing structure, with a variety of crushing cavity types, which can loosely complete the conversion between "stone-on-stone" and "stone-on-iron", and realizes multiple uses of one machine. If you want to change the new type of sand making machine According to the purpose of the machine, only a small adjustment can be made to meet the different production needs of customers, such as crushed stone shaping, artificial sand making, abrasive materials, etc.
